Adiabatic air coolers
Nowadays, adiabatic or evaporative air coolers are one of the best options on an industrial or mass scale, they use an evaporative water system that reduces energy consumption levels, which favors the environment. For this reason, many industries use adiabatic or evaporative air coolers in different applications.
The uses for adiabatic air coolers are to cool a fluid to temperatures slightly below ambient temperature, depending on the climatic zone in which they are located.
Interested?
Inditer's adiabatic aircoolers
Range standards:
- Temperatures in the circuit:
- Dry Zones: 15ºC less than the maximum outside temperature.
- Medium and Humid Zones: between 10 and 5º C less than the maximum outside temperature.
- Equipment equipped with autonomous control for the management of both the ventilation group and the irrigation of the adiabatic system with a single operating setpoint.
- Designed to ensure the absence of areas where water from the system can stagnate by algorithms, in addition to a specially designed algorithm for draining the water distribution system.
- Chassis and bodywork made of galvanized steel sheet, with weatherproofing treatment
- High resistance to corrosion and R.U.V. RAL 7004 color, applied on all surfaces prior to assembly, guaranteeing high durability and quality finish.
Optionals available:
- Dual set point control (dry / adiabatic operation)
- Bidirectional communication via mod-bus
EPA AWSV SLIM - V SLIM EPA AWSV SLIM SERIES
MEG – Water / Glycol mixtures. Heat transfer fluids
– Power (kW): 40 – 580
– Fans: 1 – 9
– Diameters (ø):
- 800

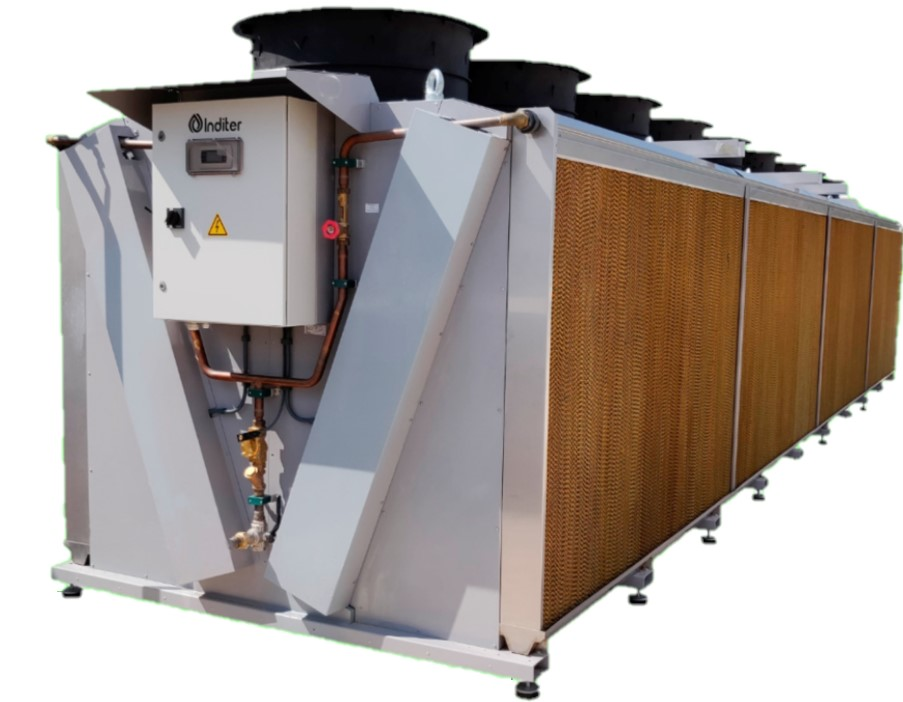

SERIES EPA AWSV SLIM - V SINGLE
MEG – Water / Glycol mixtures. Heat transfer fluids
– Power (kW): 54 – 800
– Fans: 1 – 9
– Diameters (ø):
- 910

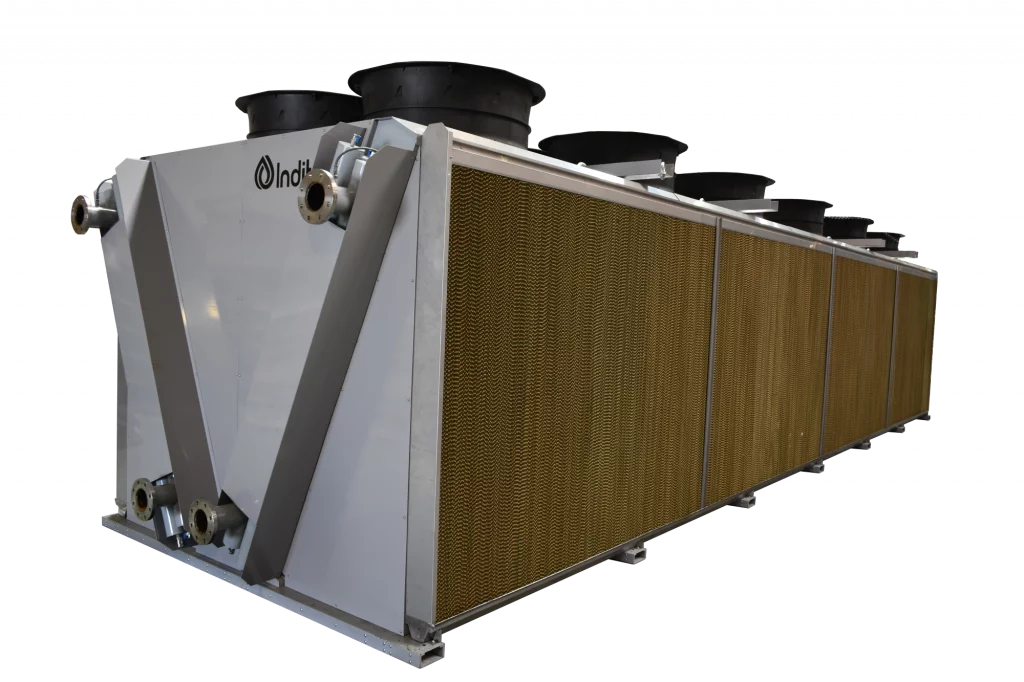

EPA AWDV SERIES - V DOUBLE
MEG – Water / Glycol mixtures. Heat transfer fluids
– Power (kW): 185 – 1050
– Fans: 4 – 18
– Diameters (ø):
- 910
EPA AWDV SERIES - V DOUBLE LOW NOISE LEVEL
MEG – Water / Glycol mixtures. Heat transfer fluids
– Power (kW): 170 – 700
– Fans: 4 – 18
– Diameters (ø):
- 500
- 630
- 800
- 910
