CPD air conditioning

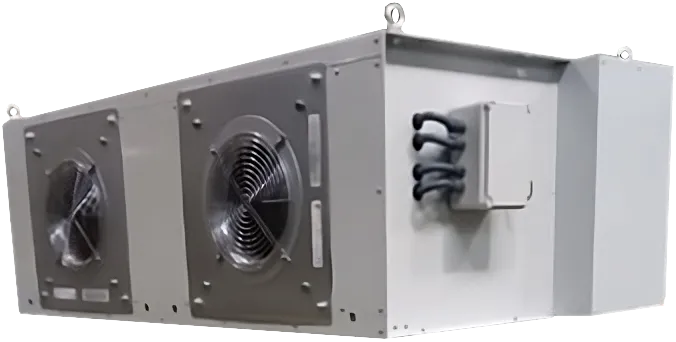

The Low Silhouette Radial units type NCSS are designed for sensitive thermal exchange with high dissipation capacity of the environment of the Technical Rooms and DPC’s, calculated to work with 10-35% ethylene glycol mixtures.
They have been designed for horizontal ceiling mounting, with the possibility of connection to supply and return ducts or operation with free discharge and intake. Lateral and bottom adjustable, to facilitate maintenance work.
They have radial type ventilation groups and EC technology, which allows precise temperature control, as well as receiving information on their status through the ModBus communication available in each unit.
Interested?
Inditer's CPD air conditioners
Range standards:
- Chassis and casing made of galvanized steel sheet, treated by application of thermosetting polyester polymer with high resistance to ultraviolet radiation and corrosion, RAL 7004.
- Structure for horizontal ceiling mounting, anti-vibration mounts recommended (not included).
- Possibility to connect to suction duct.
- Washable G2 filters on suction side.
- Side accesses for maintenance work.
- Stainless steel condensate collection tray with 3/4″ gas threaded male drain.
- Adjustable louvers in the air outlet.
- THERMAL EXCHANGERS made of copper tubes and aluminum fins with “V-BAFLE” type profile. Manifolds in copper pipe with 1″ Gas male threaded sleeve, hydraulic connection In/out on the same side. Purge and drain valves included.
- Design pressure (PS) of 8 bar
- Radial fans with curved blades made of high resistance composite material. Synchronous motor with external rotor, EC technology with low consumption and high efficiency IE5. Assembled on support plate with suction ear and protection grid on the suction side.
- Supply voltage I-200…277V, 50/60Hz, degree of protection IP54 and class THCL-155.
- Air temperature probe for return or supply air reading, interchangeable bulb position.
- Electric power and control panel integrated in the equipment, including internal wiring to the fans and manual operation verification selector.
- 0-10v signals for speed regulation
- Fan failure relay
- ModBUS communication for integration into BMS
Optionals available:
- Different fin materials depending on the corrosive environment
- Aluminum fin coated with blue polyurethane
- Aluminium-magnesium alloy fin
- Copper fin
- Anticorrosive paint treatment
- G4 suction filters
- Packing with phytosanitary wooden cage for export (on request)
Service area
For the service area in the Technical Rooms of Data Processing Centers, Inditer has a complete line of Fan Coils, ideal for maintaining a precise and stable climate in environments with high thermal demand.
These units are designed to offer maximum energy efficiency, low noise level and constant thermal control, contributing to the protection of critical equipment and the proper functioning of the most demanding technological systems.
RWSN SERIES - FAN COIL TECHNICAL ROOMS
– Power (kW): 4.5 – 130
– Fans: 1 – 4
– Diameters (ø):
- 450
- 500
- 630
- 800
Dissipation zone
inditer offers specific solutions for the heat dissipation area in Data Processing Centers. We have a wide range of air coolers and adiabatic equipment designed to evacuate excess heat efficiently, ensuring optimal and continuous performance of the facilities.
Our systems adapt to different configurations and levels of demand, providing reliable, efficient and energy-efficient cooling, even in adverse weather conditions.
