High temperature air coolers

High temperature air coolers correspond to our range of aerosol coolers prepared to cool fluids that can reach 70°C to 110°C, conditions that would damage typical suction fans, where the air is sucked from the coil.

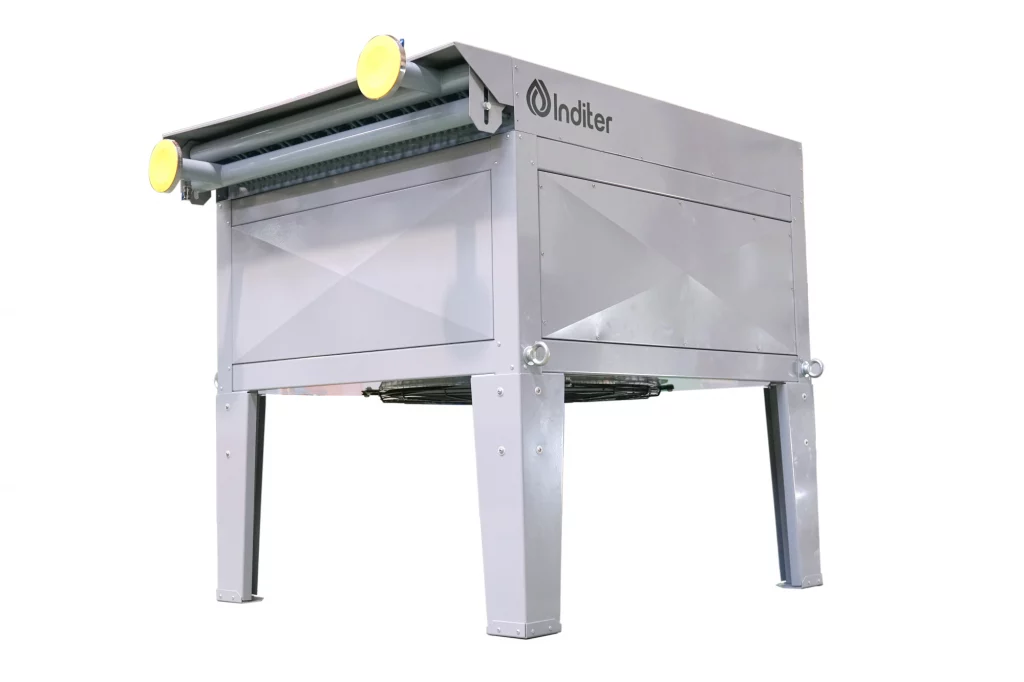

For this purpose, impeller fans are used, where the air is impelled against the coil, being placed in an inverted position to that of the typical conventional air cooler, being able to withstand high air transfer temperatures.

Interested?

Features of Inditer's air coolers

The different variants of this equipment allow you to find from a fan to air coolers with compact, rigid and exchange coil structures built with copper tube and aluminum fins. In addition, the standard versions have removable legs to offer the greatest convenience and more installation options.

These units are weather-resistant because the chassis and casing are coated with polymerized, thermosetting paint to prevent corrosion. In addition, they also have special high-strength fins. Inditer evaporative coolers last much longer and in the best conditions.

Range standards:

Available in table type (vertical/horizontal air flow) or V type, in single or double line of fans.
Structure for mounting on leveled bedplate, anti-vibration mounts recommended (not included).
Chassis and casing made of galvanized steel sheet, treated for installation in INTEMPERIE by application of Thermosetting Polyester type Polymer with High Resistance to Ultraviolet Radiation and Corrosion, RAL 7004.
THERMAL EXCHANGERS made of copper tubes and aluminum fins with “V-BAFLE” type profile. Copper pipe manifolds, threaded connection up to 2″ and with stainless steel flange according to EN-1092-1 for larger diameters. Purge and drain valves included.
Design pressure (PS) of 8 bar
Axial fans with high efficiency aerodynamic blades and AC motor, IP54 protection degree and protection grill.
Supply voltages I-230v, III-400v, 50Hz
Electric power and control panel integrated in the equipment, including internal wiring up to the fans.

Optionals available:

Stainless steel chassis and enclosure
Painted steel manifolds
Connections on both sides
Different fin materials depending on the corrosive environment
- Aluminum fin coated with blue polyurethane
- Aluminium-magnesium alloy fin
- Copper fin
- Anticorrosive paint treatment
Fin pitches available 2.1mm – 4mm
Protective grid for exchange surface
Electronic EC fans
Low noise level fans
Specific supply voltages at 60Hz
Fan-operated maintenance disconnecting switch
Adiabatic pre-cooling spray kit
Control of the fan regulation according to the fluid temperature:
- Proportional control with EC fans
  - Modbus communication (RS-485 / TCP-IP)
  - BACnet communication
- Partialization of fans with AC fans
Packing with phytosanitary wooden cage for export (on request)
